I used node-red running on a RasPi to connect my Sisyphus to HomeKit. I can see the tables state and change brightness and speed and send it into sleep mode.

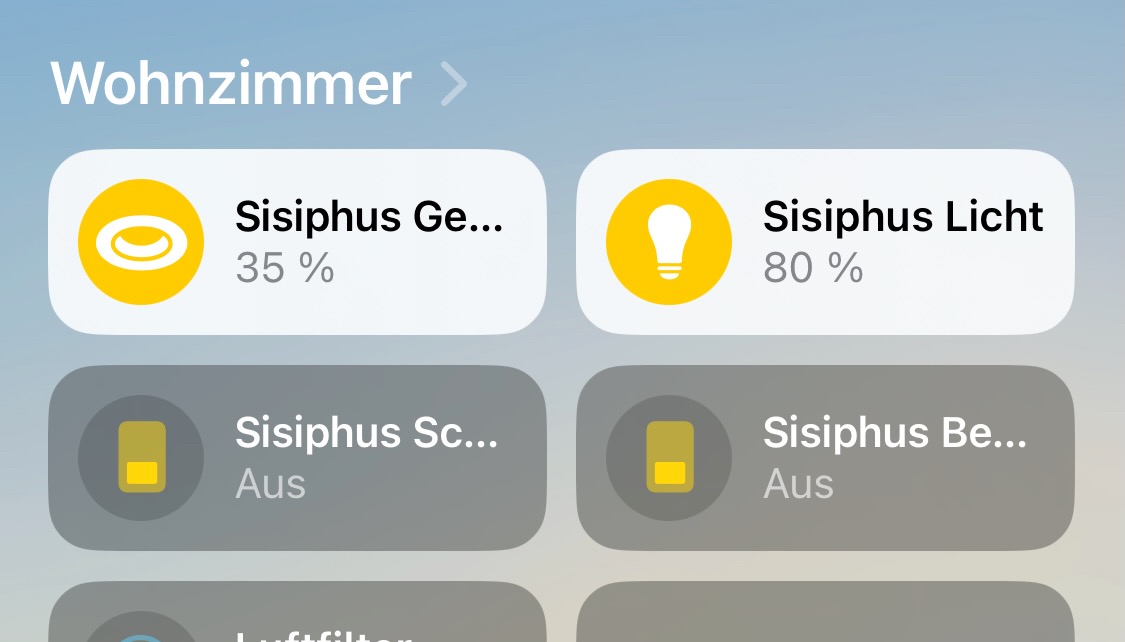

It's all mapped as "lights" in homekit, but it works, see picture.
It uses the HomeKit-bridged-nodes ( https://flows.nodered.org/node/node-red-contrib-homekit-bridged ).
Flows are pasted below (import to node red), you need to set the IP in every HTTP node to your table's local IP. ( replace all <your sisyphus IP> with e.g. 192.168.0.100)
[
{
"id": "9fae6a4f07359a53",
"type": "tab",
"label": "Sisi",
"disabled": false,
"info": "",
"env": []
},
{
"id": "73509f73e6f51240",
"type": "http request",
"z": "9fae6a4f07359a53",
"name": "Status",
"method": "POST",
"ret": "txt",
"paytoqs": "ignore",
"url": "<your sisyphus IP>:3002/sisbot/state",
"tls": "",
"persist": false,
"proxy": "",
"insecureHTTPParser": false,
"authType": "",
"senderr": false,
"headers": [],
"x": 590,
"y": 200,
"wires": [
[
"e378416052644b5a"
]
]
},
{
"id": "41e11e07a32918a5",
"type": "debug",
"z": "9fae6a4f07359a53",
"name": "Sisiphus",
"active": false,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "payload",
"targetType": "msg",
"statusVal": "",
"statusType": "auto",
"x": 780,
"y": 300,
"wires": []
},
{
"id": "fc3777898e1070ac",
"type": "inject",
"z": "9fae6a4f07359a53",
"name": "",
"props": [
{
"p": "payload"
},
{
"p": "topic",
"vt": "str"
}
],
"repeat": "300",
"crontab": "",
"once": true,
"onceDelay": "0.5",
"topic": "",
"payload": "",
"payloadType": "date",
"x": 410,
"y": 200,
"wires": [
[
"73509f73e6f51240"
]
]
},
{
"id": "e378416052644b5a",
"type": "json",
"z": "9fae6a4f07359a53",
"name": "",
"property": "payload",
"action": "",
"pretty": false,
"x": 790,
"y": 200,
"wires": [
[
"41e11e07a32918a5",
"39df053a83dd1fba",
"a8f8972fcca98982",
"7f4956edc8867b95",
"4fa0f7929fdf5ddf"
]
]
},
{
"id": "9bc253a01a47fc47",
"type": "http request",
"z": "9fae6a4f07359a53",
"name": "Brightness",
"method": "POST",
"ret": "txt",
"paytoqs": "ignore",
"url": "<your sisyphus IP>:3002/sisbot/set_brightness",
"tls": "",
"persist": false,
"proxy": "",
"insecureHTTPParser": false,
"authType": "",
"senderr": false,
"headers": [],
"x": 670,
"y": 420,
"wires": [
[
"38fa7a64f8e3342d"
]
]
},
{
"id": "38fa7a64f8e3342d",
"type": "json",
"z": "9fae6a4f07359a53",
"name": "",
"property": "payload",
"action": "",
"pretty": false,
"x": 830,
"y": 420,
"wires": [
[
"c2e66511672b15ad"
]
]
},
{
"id": "af36a800b4bc3cf9",
"type": "ui_slider",
"z": "9fae6a4f07359a53",
"name": "",
"label": "Licht",
"tooltip": "",
"group": "6554eaffa3deadf7",
"order": 0,
"width": 0,
"height": 0,
"passthru": false,
"outs": "end",
"topic": "topic",
"topicType": "msg",
"min": 0,
"max": "100",
"step": "5",
"className": "",
"x": 170,
"y": 420,
"wires": [
[
"40a03d00d8309ebb"
]
]
},
{
"id": "40a03d00d8309ebb",
"type": "change",
"z": "9fae6a4f07359a53",
"name": "",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "{\"data\":{\"value\": payload / 100 }}",
"tot": "jsonata"
},
{
"t": "move",
"p": "payload",
"pt": "msg",
"to": "payload.data",
"tot": "msg"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 350,
"y": 420,
"wires": [
[
"9bc253a01a47fc47"
]
]
},
{
"id": "39df053a83dd1fba",
"type": "change",
"z": "9fae6a4f07359a53",
"name": "Brightness?",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "payload.resp[0].brightness",
"tot": "msg"
},
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "$number(payload * 100)",
"tot": "jsonata"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 990,
"y": 220,
"wires": [
[
"de60c524a09d4ed9",
"d775e7cc56dbeac6"
]
]
},
{
"id": "63f2f9f64b897f20",
"type": "http request",
"z": "9fae6a4f07359a53",
"name": "Play",
"method": "POST",
"ret": "txt",
"paytoqs": "ignore",
"url": "<your sisyphus IP>:3002/sisbot/play",
"tls": "",
"persist": false,
"proxy": "",
"insecureHTTPParser": false,
"authType": "",
"senderr": false,
"headers": [],
"x": 670,
"y": 520,
"wires": [
[
"6b0dd9ecaa2e6638"
]
]
},
{
"id": "9075a0b57341fafe",
"type": "ui_switch",
"z": "9fae6a4f07359a53",
"name": "",
"label": "Bewegung",
"tooltip": "",
"group": "6554eaffa3deadf7",
"order": 1,
"width": 0,
"height": 0,
"passthru": false,
"decouple": "true",
"topic": "topic",
"topicType": "msg",
"style": "",
"onvalue": "true",
"onvalueType": "bool",
"onicon": "",
"oncolor": "",
"offvalue": "false",
"offvalueType": "bool",
"officon": "",
"offcolor": "",
"animate": false,
"className": "",
"x": 190,
"y": 560,
"wires": [
[
"9b345ce68657d103"
]
]
},
{
"id": "9b345ce68657d103",
"type": "switch",
"z": "9fae6a4f07359a53",
"name": "",
"property": "payload",
"propertyType": "msg",
"rules": [
{
"t": "true"
},
{
"t": "false"
}
],
"checkall": "true",
"repair": false,
"outputs": 2,
"x": 330,
"y": 560,
"wires": [
[
"c7ae165f5a97da02"
],
[
"26d88f94f53e2873"
]
]
},
{
"id": "1cdd2ca370b02943",
"type": "http request",
"z": "9fae6a4f07359a53",
"name": "Pause",
"method": "POST",
"ret": "txt",
"paytoqs": "ignore",
"url": "<your sisyphus IP>:3002/sisbot/pause",
"tls": "",
"persist": false,
"proxy": "",
"insecureHTTPParser": false,
"authType": "",
"senderr": false,
"headers": [],
"x": 670,
"y": 580,
"wires": [
[
"7194fd74f010df06"
]
]
},
{
"id": "c7ae165f5a97da02",
"type": "change",
"z": "9fae6a4f07359a53",
"name": "",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "{\"data\":{}}",
"tot": "jsonata"
},
{
"t": "move",
"p": "payload",
"pt": "msg",
"to": "payload.data",
"tot": "msg"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 510,
"y": 540,
"wires": [
[
"63f2f9f64b897f20"
]
]
},
{
"id": "26d88f94f53e2873",
"type": "change",
"z": "9fae6a4f07359a53",
"name": "",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "{\"data\":{}}",
"tot": "jsonata"
},
{
"t": "move",
"p": "payload",
"pt": "msg",
"to": "payload.data",
"tot": "msg"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 510,
"y": 580,
"wires": [
[
"1cdd2ca370b02943"
]
]
},
{
"id": "a8f8972fcca98982",
"type": "change",
"z": "9fae6a4f07359a53",
"name": "Playing?",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "payload.resp[0].state",
"tot": "msg"
},
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "$boolean(payload=\"playing\")",
"tot": "jsonata"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 980,
"y": 140,
"wires": [
[
"220b9afe727d6406",
"6d7b734893d635eb"
]
]
},
{
"id": "a08c778833c866a8",
"type": "http request",
"z": "9fae6a4f07359a53",
"name": "Sleep",
"method": "POST",
"ret": "txt",
"paytoqs": "ignore",
"url": "<your sisyphus IP>:3002/sisbot/sleep_sisbot",
"tls": "",
"persist": false,
"proxy": "",
"insecureHTTPParser": false,
"authType": "",
"senderr": false,
"headers": [],
"x": 690,
"y": 700,
"wires": [
[
"cda674dd875afcac"
]
]
},
{
"id": "49d0ad8faaf2927e",
"type": "ui_switch",
"z": "9fae6a4f07359a53",
"name": "",
"label": "Schlafen",
"tooltip": "",
"group": "6554eaffa3deadf7",
"order": 1,
"width": 0,
"height": 0,
"passthru": false,
"decouple": "true",
"topic": "topic",
"topicType": "msg",
"style": "",
"onvalue": "true",
"onvalueType": "bool",
"onicon": "",
"oncolor": "",
"offvalue": "false",
"offvalueType": "bool",
"officon": "",
"offcolor": "",
"animate": false,
"className": "",
"x": 200,
"y": 740,
"wires": [
[
"14949e5be26a1b5a"
]
]
},
{
"id": "14949e5be26a1b5a",
"type": "switch",
"z": "9fae6a4f07359a53",
"name": "",
"property": "payload",
"propertyType": "msg",
"rules": [
{
"t": "true"
},
{
"t": "false"
}
],
"checkall": "true",
"repair": false,
"outputs": 2,
"x": 350,
"y": 740,
"wires": [
[
"8bb186b210998b1b"
],
[
"ae950e9992906e3b"
]
]
},
{
"id": "1d7febeaa33334d8",
"type": "http request",
"z": "9fae6a4f07359a53",
"name": "Wake",
"method": "POST",
"ret": "txt",
"paytoqs": "ignore",
"url": "<your sisyphus IP>:3002/sisbot/wake_sisbot",
"tls": "",
"persist": false,
"proxy": "",
"insecureHTTPParser": false,
"authType": "",
"senderr": false,
"headers": [],
"x": 690,
"y": 760,
"wires": [
[
"92f657b08207954d"
]
]
},
{
"id": "8bb186b210998b1b",
"type": "change",
"z": "9fae6a4f07359a53",
"name": "",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "{\"data\":{}}",
"tot": "jsonata"
},
{
"t": "move",
"p": "payload",
"pt": "msg",
"to": "payload.data",
"tot": "msg"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 530,
"y": 720,
"wires": [
[
"a08c778833c866a8"
]
]
},
{
"id": "ae950e9992906e3b",
"type": "change",
"z": "9fae6a4f07359a53",
"name": "",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "{\"data\":{}}",
"tot": "jsonata"
},
{
"t": "move",
"p": "payload",
"pt": "msg",
"to": "payload.data",
"tot": "msg"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 530,
"y": 760,
"wires": [
[
"1d7febeaa33334d8"
]
]
},
{
"id": "7f4956edc8867b95",
"type": "change",
"z": "9fae6a4f07359a53",
"name": "Sleeping?",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "payload.resp[0].is_sleeping",
"tot": "msg"
},
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "$boolean(payload=\"true\")",
"tot": "jsonata"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 980,
"y": 60,
"wires": [
[
"580b3e169655659f",
"12d3c0aafa98ed16"
]
]
},
{
"id": "a15ad883eefaadd1",
"type": "ui_slider",
"z": "9fae6a4f07359a53",
"name": "",
"label": "Speed",
"tooltip": "",
"group": "6554eaffa3deadf7",
"order": 0,
"width": 0,
"height": 0,
"passthru": false,
"outs": "end",
"topic": "topic",
"topicType": "msg",
"min": 0,
"max": "100",
"step": "5",
"className": "",
"x": 190,
"y": 880,
"wires": [
[
"4c05864808a3bc6d"
]
]
},
{
"id": "4c05864808a3bc6d",
"type": "change",
"z": "9fae6a4f07359a53",
"name": "",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "{\"data\":{\"value\": payload / 100 }}",
"tot": "jsonata"
},
{
"t": "move",
"p": "payload",
"pt": "msg",
"to": "payload.data",
"tot": "msg"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 370,
"y": 880,
"wires": [
[
"caef962c763c04c3"
]
]
},
{
"id": "caef962c763c04c3",
"type": "http request",
"z": "9fae6a4f07359a53",
"name": "Speed",
"method": "POST",
"ret": "txt",
"paytoqs": "ignore",
"url": "<your sisyphus IP>:3002/sisbot/set_speed",
"tls": "",
"persist": false,
"proxy": "",
"insecureHTTPParser": false,
"authType": "",
"senderr": false,
"headers": [],
"x": 650,
"y": 880,
"wires": [
[
"79ae20d6129a2c45"
]
]
},
{
"id": "4fa0f7929fdf5ddf",
"type": "change",
"z": "9fae6a4f07359a53",
"name": "Speed?",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "payload.resp[0].speed",
"tot": "msg"
},
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "$number(payload * 100)",
"tot": "jsonata"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 980,
"y": 300,
"wires": [
[
"5285e529645679cf",
"d0d6e0221218181e"
]
]
},
{
"id": "580b3e169655659f",
"type": "change",
"z": "9fae6a4f07359a53",
"name": "Context: Sleeping",
"rules": [
{
"t": "set",
"p": "Sleeping",
"pt": "flow",
"to": "payload",
"tot": "msg"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 1630,
"y": 60,
"wires": [
[]
]
},
{
"id": "220b9afe727d6406",
"type": "change",
"z": "9fae6a4f07359a53",
"name": "Context: Playing",
"rules": [
{
"t": "set",
"p": "Playing",
"pt": "flow",
"to": "payload",
"tot": "msg"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 1620,
"y": 140,
"wires": [
[]
]
},
{
"id": "de60c524a09d4ed9",
"type": "change",
"z": "9fae6a4f07359a53",
"name": "Context: Brightness",
"rules": [
{
"t": "set",
"p": "Brightness",
"pt": "flow",
"to": "payload",
"tot": "msg"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 1640,
"y": 220,
"wires": [
[]
]
},
{
"id": "5285e529645679cf",
"type": "change",
"z": "9fae6a4f07359a53",
"name": "Context: Speed",
"rules": [
{
"t": "set",
"p": "Speed",
"pt": "flow",
"to": "payload",
"tot": "msg"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 1620,
"y": 300,
"wires": [
[]
]
},
{
"id": "6b0dd9ecaa2e6638",
"type": "json",
"z": "9fae6a4f07359a53",
"name": "",
"property": "payload",
"action": "",
"pretty": false,
"x": 830,
"y": 520,
"wires": [
[
"907d14755a4e2b83"
]
]
},
{
"id": "7194fd74f010df06",
"type": "json",
"z": "9fae6a4f07359a53",
"name": "",
"property": "payload",
"action": "",
"pretty": false,
"x": 830,
"y": 580,
"wires": [
[
"907d14755a4e2b83"
]
]
},
{
"id": "cda674dd875afcac",
"type": "json",
"z": "9fae6a4f07359a53",
"name": "",
"property": "payload",
"action": "",
"pretty": false,
"x": 830,
"y": 700,
"wires": [
[
"496506aff8f78d7a"
]
]
},
{
"id": "92f657b08207954d",
"type": "json",
"z": "9fae6a4f07359a53",
"name": "",
"property": "payload",
"action": "",
"pretty": false,
"x": 830,
"y": 760,
"wires": [
[
"496506aff8f78d7a"
]
]
},
{
"id": "79ae20d6129a2c45",
"type": "json",
"z": "9fae6a4f07359a53",
"name": "",
"property": "payload",
"action": "",
"pretty": false,
"x": 830,
"y": 880,
"wires": [
[
"15ea002c5786ea5b"
]
]
},
{
"id": "594eee43c3eab60c",
"type": "change",
"z": "9fae6a4f07359a53",
"name": "",
"rules": [
{
"t": "move",
"p": "payload.resp[0].state",
"pt": "msg",
"to": "payload",
"tot": "msg"
},
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "$boolean(payload=\"playing\")",
"tot": "jsonata"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 1170,
"y": 500,
"wires": [
[
"859f5f1de2609321"
]
]
},
{
"id": "907d14755a4e2b83",
"type": "switch",
"z": "9fae6a4f07359a53",
"name": "",
"property": "payload.resp",
"propertyType": "msg",
"rules": [
{
"t": "istype",
"v": "array",
"vt": "array"
},
{
"t": "istype",
"v": "object",
"vt": "object"
}
],
"checkall": "true",
"repair": false,
"outputs": 2,
"x": 970,
"y": 520,
"wires": [
[
"594eee43c3eab60c"
],
[
"97facbf16990ec80"
]
],
"outputLabels": [
"Array",
"Object"
]
},
{
"id": "97facbf16990ec80",
"type": "change",
"z": "9fae6a4f07359a53",
"name": "",
"rules": [
{
"t": "move",
"p": "payload.resp.state",
"pt": "msg",
"to": "payload",
"tot": "msg"
},
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "$boolean(payload=\"playing\")",
"tot": "jsonata"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 1170,
"y": 540,
"wires": [
[
"859f5f1de2609321"
]
]
},
{
"id": "859f5f1de2609321",
"type": "switch",
"z": "9fae6a4f07359a53",
"name": "",
"property": "payload",
"propertyType": "msg",
"rules": [
{
"t": "neq",
"v": "Playing",
"vt": "flow"
},
{
"t": "else"
}
],
"checkall": "true",
"repair": false,
"outputs": 2,
"x": 1370,
"y": 520,
"wires": [
[
"a73e29bd6ee47346",
"220b9afe727d6406"
],
[]
]
},
{
"id": "a73e29bd6ee47346",
"type": "link out",
"z": "9fae6a4f07359a53",
"name": "Playing",
"mode": "link",
"links": [
"12a89f7554683b42"
],
"x": 1465,
"y": 520,
"wires": []
},
{
"id": "12a89f7554683b42",
"type": "link in",
"z": "9fae6a4f07359a53",
"name": "link in 1",
"links": [
"a73e29bd6ee47346",
"6d7b734893d635eb"
],
"x": 45,
"y": 560,
"wires": [
[
"9075a0b57341fafe",
"013ed6cf796b5671"
]
]
},
{
"id": "c2b55d5f0d228713",
"type": "change",
"z": "9fae6a4f07359a53",
"name": "",
"rules": [
{
"t": "move",
"p": "payload.resp[0].is_sleeping",
"pt": "msg",
"to": "payload",
"tot": "msg"
},
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "$boolean(payload=\"true\")",
"tot": "jsonata"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 1170,
"y": 700,
"wires": [
[
"cbc71c17cf020eec"
]
]
},
{
"id": "496506aff8f78d7a",
"type": "switch",
"z": "9fae6a4f07359a53",
"name": "",
"property": "payload.resp",
"propertyType": "msg",
"rules": [
{
"t": "istype",
"v": "array",
"vt": "array"
},
{
"t": "istype",
"v": "object",
"vt": "object"
}
],
"checkall": "true",
"repair": false,
"outputs": 2,
"x": 970,
"y": 720,
"wires": [
[
"c2b55d5f0d228713"
],
[
"d42f3f175da994bc"
]
],
"outputLabels": [
"Array",
"Object"
]
},
{
"id": "d42f3f175da994bc",
"type": "change",
"z": "9fae6a4f07359a53",
"name": "",
"rules": [
{
"t": "move",
"p": "payload.resp.is_sleeping",
"pt": "msg",
"to": "payload",
"tot": "msg"
},
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "$boolean(payload=\"true\")",
"tot": "jsonata"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 1170,
"y": 740,
"wires": [
[
"cbc71c17cf020eec"
]
]
},
{
"id": "cbc71c17cf020eec",
"type": "switch",
"z": "9fae6a4f07359a53",
"name": "",
"property": "payload",
"propertyType": "msg",
"rules": [
{
"t": "neq",
"v": "Sleeping",
"vt": "flow"
},
{
"t": "else"
}
],
"checkall": "true",
"repair": false,
"outputs": 2,
"x": 1370,
"y": 720,
"wires": [
[
"330192bde4a80dbc",
"580b3e169655659f"
],
[]
]
},
{
"id": "330192bde4a80dbc",
"type": "link out",
"z": "9fae6a4f07359a53",
"name": "link out 1",
"mode": "link",
"links": [
"af6ade35725d93ac"
],
"x": 1495,
"y": 700,
"wires": []
},
{
"id": "af6ade35725d93ac",
"type": "link in",
"z": "9fae6a4f07359a53",
"name": "link in 2",
"links": [
"330192bde4a80dbc",
"12d3c0aafa98ed16"
],
"x": 45,
"y": 740,
"wires": [
[
"49d0ad8faaf2927e",
"d590150140f5f727"
]
]
},
{
"id": "15ea002c5786ea5b",
"type": "change",
"z": "9fae6a4f07359a53",
"name": "",
"rules": [
{
"t": "move",
"p": "payload.resp.speed",
"pt": "msg",
"to": "payload",
"tot": "msg"
},
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "$number(payload * 100)",
"tot": "jsonata"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 1010,
"y": 880,
"wires": [
[
"bfd0182b2ef26408"
]
]
},
{
"id": "bfd0182b2ef26408",
"type": "switch",
"z": "9fae6a4f07359a53",
"name": "",
"property": "payload",
"propertyType": "msg",
"rules": [
{
"t": "neq",
"v": "Speed",
"vt": "flow"
},
{
"t": "else"
}
],
"checkall": "true",
"repair": false,
"outputs": 2,
"x": 1190,
"y": 880,
"wires": [
[
"5285e529645679cf",
"886a012c9c234912"
],
[]
]
},
{
"id": "886a012c9c234912",
"type": "link out",
"z": "9fae6a4f07359a53",
"name": "link out 2",
"mode": "link",
"links": [
"2fe116c6b58e03a8"
],
"x": 1295,
"y": 900,
"wires": []
},
{
"id": "2fe116c6b58e03a8",
"type": "link in",
"z": "9fae6a4f07359a53",
"name": "link in 3",
"links": [
"886a012c9c234912",
"d0d6e0221218181e"
],
"x": 45,
"y": 880,
"wires": [
[
"a15ad883eefaadd1",
"289f7b79dd7ea6ac"
]
]
},
{
"id": "c2e66511672b15ad",
"type": "change",
"z": "9fae6a4f07359a53",
"name": "",
"rules": [
{
"t": "move",
"p": "payload.resp.brightness",
"pt": "msg",
"to": "payload",
"tot": "msg"
},
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "$number(payload * 100)",
"tot": "jsonata"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 1010,
"y": 380,
"wires": [
[
"b727ec1519b5a181"
]
]
},
{
"id": "b727ec1519b5a181",
"type": "switch",
"z": "9fae6a4f07359a53",
"name": "",
"property": "payload",
"propertyType": "msg",
"rules": [
{
"t": "neq",
"v": "Brightness",
"vt": "flow"
},
{
"t": "else"
}
],
"checkall": "true",
"repair": false,
"outputs": 2,
"x": 1190,
"y": 380,
"wires": [
[
"de60c524a09d4ed9",
"579d6da71f12fe9c"
],
[]
]
},
{
"id": "579d6da71f12fe9c",
"type": "link out",
"z": "9fae6a4f07359a53",
"name": "link out 3",
"mode": "link",
"links": [
"4f409a4348c3336c"
],
"x": 1285,
"y": 400,
"wires": []
},
{
"id": "4f409a4348c3336c",
"type": "link in",
"z": "9fae6a4f07359a53",
"name": "link in 4",
"links": [
"579d6da71f12fe9c",
"d775e7cc56dbeac6"
],
"x": 45,
"y": 420,
"wires": [
[
"af36a800b4bc3cf9",
"255652d54d50cada"
]
]
},
{
"id": "12d3c0aafa98ed16",
"type": "link out",
"z": "9fae6a4f07359a53",
"name": "link out 4",
"mode": "link",
"links": [
"af6ade35725d93ac"
],
"x": 1215,
"y": 80,
"wires": []
},
{
"id": "6d7b734893d635eb",
"type": "link out",
"z": "9fae6a4f07359a53",
"name": "link out 5",
"mode": "link",
"links": [
"12a89f7554683b42"
],
"x": 1215,
"y": 160,
"wires": []
},
{
"id": "d775e7cc56dbeac6",
"type": "link out",
"z": "9fae6a4f07359a53",
"name": "link out 6",
"mode": "link",
"links": [
"4f409a4348c3336c"
],
"x": 1215,
"y": 240,
"wires": []
},
{
"id": "d0d6e0221218181e",
"type": "link out",
"z": "9fae6a4f07359a53",
"name": "link out 7",
"mode": "link",
"links": [
"2fe116c6b58e03a8"
],
"x": 1215,
"y": 320,
"wires": []
},
{
"id": "a21293aba52b197e",
"type": "homekit-service",
"z": "9fae6a4f07359a53",
"isParent": true,
"hostType": "0",
"bridge": "9ecbb87f3de9fb1b",
"accessoryId": "",
"parentService": "",
"name": "Sisiphus Licht",
"serviceName": "Lightbulb",
"topic": "",
"filter": false,
"manufacturer": "NRCHKB",
"model": "1.6.1",
"serialNo": "Default Serial Number",
"firmwareRev": "1.6.1",
"hardwareRev": "1.6.1",
"softwareRev": "1.6.1",
"cameraConfigVideoProcessor": "ffmpeg",
"cameraConfigSource": "",
"cameraConfigStillImageSource": "",
"cameraConfigMaxStreams": 2,
"cameraConfigMaxWidth": 1280,
"cameraConfigMaxHeight": 720,
"cameraConfigMaxFPS": 10,
"cameraConfigMaxBitrate": 300,
"cameraConfigVideoCodec": "libx264",
"cameraConfigAudioCodec": "libfdk_aac",
"cameraConfigAudio": false,
"cameraConfigPacketSize": 1316,
"cameraConfigVerticalFlip": false,
"cameraConfigHorizontalFlip": false,
"cameraConfigMapVideo": "0:0",
"cameraConfigMapAudio": "0:1",
"cameraConfigVideoFilter": "scale=1280:720",
"cameraConfigAdditionalCommandLine": "-tune zerolatency",
"cameraConfigDebug": false,
"cameraConfigSnapshotOutput": "disabled",
"cameraConfigInterfaceName": "",
"characteristicProperties": "{\"Brightness\":true}",
"waitForSetupMsg": false,
"outputs": 2,
"x": 360,
"y": 360,
"wires": [
[
"e21fe521a2a12d15"
],
[]
]
},
{
"id": "255652d54d50cada",
"type": "function",
"z": "9fae6a4f07359a53",
"name": "Convert2input",
"func": "var input = msg.payload;\nif (input < 101) {\n if (input < 1) {\n msg.payload = {\n \"On\": false\n }\n }\n else {\n msg.payload = {\n \"Brightness\": input,\n \"On\": true\n }\n }\n return msg;\n}",
"outputs": 1,
"timeout": 0,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 180,
"y": 360,
"wires": [
[
"a21293aba52b197e"
]
]
},
{
"id": "e21fe521a2a12d15",
"type": "function",
"z": "9fae6a4f07359a53",
"name": "Convert2Value",
"func": "var b = context.get('b') || 0;\nif (msg.payload.Brightness) {\n b = msg.payload.Brightness;\n context.set('b', b);\n msg.payload = b\n}\n\n// Uncomment lines 9 and 20 to prevent looping\nif (msg.hap.context !== undefined) {\n if (msg.payload.Brightness === 0) {\n msg.payload = 0\n }\n if (msg.payload.On === false) {\n msg.payload = 0\n }\n if (msg.payload.On === true) {\n msg.payload = b\n }\n return msg\n}",
"outputs": 1,
"timeout": 0,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 560,
"y": 360,
"wires": [
[
"40a03d00d8309ebb"
]
]
},
{
"id": "923f9781e64eae44",
"type": "homekit-service",
"z": "9fae6a4f07359a53",
"isParent": true,
"hostType": "0",
"bridge": "9ecbb87f3de9fb1b",
"accessoryId": "",
"parentService": "",
"name": "Sisiphus Geschwindigkeit",
"serviceName": "Lightbulb",
"topic": "",
"filter": false,
"manufacturer": "NRCHKB",
"model": "1.6.1",
"serialNo": "Default Serial Number",
"firmwareRev": "1.6.1",
"hardwareRev": "1.6.1",
"softwareRev": "1.6.1",
"cameraConfigVideoProcessor": "ffmpeg",
"cameraConfigSource": "",
"cameraConfigStillImageSource": "",
"cameraConfigMaxStreams": 2,
"cameraConfigMaxWidth": 1280,
"cameraConfigMaxHeight": 720,
"cameraConfigMaxFPS": 10,
"cameraConfigMaxBitrate": 300,
"cameraConfigVideoCodec": "libx264",
"cameraConfigAudioCodec": "libfdk_aac",
"cameraConfigAudio": false,
"cameraConfigPacketSize": 1316,
"cameraConfigVerticalFlip": false,
"cameraConfigHorizontalFlip": false,
"cameraConfigMapVideo": "0:0",
"cameraConfigMapAudio": "0:1",
"cameraConfigVideoFilter": "scale=1280:720",
"cameraConfigAdditionalCommandLine": "-tune zerolatency",
"cameraConfigDebug": false,
"cameraConfigSnapshotOutput": "disabled",
"cameraConfigInterfaceName": "",
"characteristicProperties": "{\"Brightness\":true}",
"waitForSetupMsg": false,
"outputs": 2,
"x": 390,
"y": 820,
"wires": [
[
"b15034ee034d525c"
],
[]
]
},
{
"id": "289f7b79dd7ea6ac",
"type": "function",
"z": "9fae6a4f07359a53",
"name": "Convert2input",
"func": "var input = msg.payload;\nif (input < 101) {\n if (input < 1) {\n msg.payload = {\n \"On\": false\n }\n }\n else {\n msg.payload = {\n \"Brightness\": input,\n \"On\": true\n }\n }\n return msg;\n}",
"outputs": 1,
"timeout": 0,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 180,
"y": 820,
"wires": [
[
"923f9781e64eae44"
]
]
},
{
"id": "b15034ee034d525c",
"type": "function",
"z": "9fae6a4f07359a53",
"name": "Convert2Value",
"func": "var s = context.get('s') || 0;\nif (msg.payload.Brightness) {\n s = msg.payload.Brightness;\n context.set('s', s);\n msg.payload = s\n}\n\n// Uncomment lines 9 and 20 to prevent looping\nif (msg.hap.context !== undefined) {\n if (msg.payload.Brightness === 0) {\n msg.payload = 0\n }\n if (msg.payload.On === false) {\n msg.payload = 0\n }\n if (msg.payload.On === true) {\n msg.payload = s\n }\n return msg\n}",
"outputs": 1,
"timeout": 0,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 600,
"y": 820,
"wires": [
[
"4c05864808a3bc6d"
]
]
},
{
"id": "dd717e5993d34154",
"type": "homekit-service",
"z": "9fae6a4f07359a53",
"isParent": true,
"hostType": "0",
"bridge": "9ecbb87f3de9fb1b",
"accessoryId": "",
"parentService": "",
"name": "Sisiphus Bewegung",
"serviceName": "Switch",
"topic": "",
"filter": false,
"manufacturer": "NRCHKB",
"model": "1.6.1",
"serialNo": "Default Serial Number",
"firmwareRev": "1.6.1",
"hardwareRev": "1.6.1",
"softwareRev": "1.6.1",
"cameraConfigVideoProcessor": "ffmpeg",
"cameraConfigSource": "",
"cameraConfigStillImageSource": "",
"cameraConfigMaxStreams": 2,
"cameraConfigMaxWidth": 1280,
"cameraConfigMaxHeight": 720,
"cameraConfigMaxFPS": 10,
"cameraConfigMaxBitrate": 300,
"cameraConfigVideoCodec": "libx264",
"cameraConfigAudioCodec": "libfdk_aac",
"cameraConfigAudio": false,
"cameraConfigPacketSize": 1316,
"cameraConfigVerticalFlip": false,
"cameraConfigHorizontalFlip": false,
"cameraConfigMapVideo": "0:0",
"cameraConfigMapAudio": "0:1",
"cameraConfigVideoFilter": "scale=1280:720",
"cameraConfigAdditionalCommandLine": "-tune zerolatency",
"cameraConfigDebug": false,
"cameraConfigSnapshotOutput": "disabled",
"cameraConfigInterfaceName": "",
"characteristicProperties": "{}",
"waitForSetupMsg": false,
"outputs": 2,
"x": 360,
"y": 480,
"wires": [
[
"62d102a56184237f"
],
[]
]
},
{
"id": "013ed6cf796b5671",
"type": "function",
"z": "9fae6a4f07359a53",
"name": "Convert2input",
"func": " var newMsg = {\n \"payload\": {\n \"On\": msg.payload\n }\n }\nreturn newMsg;",
"outputs": 1,
"timeout": 0,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 160,
"y": 480,
"wires": [
[
"dd717e5993d34154"
]
]
},
{
"id": "62d102a56184237f",
"type": "change",
"z": "9fae6a4f07359a53",
"name": "",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "payload.On",
"tot": "msg"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 570,
"y": 460,
"wires": [
[
"9b345ce68657d103"
]
]
},
{
"id": "d590150140f5f727",
"type": "function",
"z": "9fae6a4f07359a53",
"name": "Convert2input",
"func": " var newMsg = {\n \"payload\": {\n \"On\": msg.payload\n }\n }\nreturn newMsg;",
"outputs": 1,
"timeout": 0,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 160,
"y": 660,
"wires": [
[
"4aa20118044ebd5c"
]
]
},
{
"id": "4aa20118044ebd5c",
"type": "homekit-service",
"z": "9fae6a4f07359a53",
"isParent": true,
"hostType": "0",
"bridge": "9ecbb87f3de9fb1b",
"accessoryId": "",
"parentService": "",
"name": "Sisiphus Schlafen",
"serviceName": "Switch",
"topic": "",
"filter": false,
"manufacturer": "NRCHKB",
"model": "1.6.1",
"serialNo": "Default Serial Number",
"firmwareRev": "1.6.1",
"hardwareRev": "1.6.1",
"softwareRev": "1.6.1",
"cameraConfigVideoProcessor": "ffmpeg",
"cameraConfigSource": "",
"cameraConfigStillImageSource": "",
"cameraConfigMaxStreams": 2,
"cameraConfigMaxWidth": 1280,
"cameraConfigMaxHeight": 720,
"cameraConfigMaxFPS": 10,
"cameraConfigMaxBitrate": 300,
"cameraConfigVideoCodec": "libx264",
"cameraConfigAudioCodec": "libfdk_aac",
"cameraConfigAudio": false,
"cameraConfigPacketSize": 1316,
"cameraConfigVerticalFlip": false,
"cameraConfigHorizontalFlip": false,
"cameraConfigMapVideo": "0:0",
"cameraConfigMapAudio": "0:1",
"cameraConfigVideoFilter": "scale=1280:720",
"cameraConfigAdditionalCommandLine": "-tune zerolatency",
"cameraConfigDebug": false,
"cameraConfigSnapshotOutput": "disabled",
"cameraConfigInterfaceName": "",
"characteristicProperties": "{}",
"waitForSetupMsg": false,
"outputs": 2,
"x": 350,
"y": 660,
"wires": [
[
"86f316975b609b6f"
],
[]
]
},
{
"id": "86f316975b609b6f",
"type": "change",
"z": "9fae6a4f07359a53",
"name": "",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "payload.On",
"tot": "msg"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 570,
"y": 640,
"wires": [
[
"14949e5be26a1b5a"
]
]
},
{
"id": "6554eaffa3deadf7",
"type": "ui_group",
"name": "Steuerung",
"tab": "92d95ee4c013a822",
"order": 1,
"disp": true,
"width": "6",
"collapse": false,
"className": ""
},
{
"id": "9ecbb87f3de9fb1b",
"type": "homekit-bridge",
"bridgeName": "NodeRedBridgeAdapter",
"pinCode": "4813-2314",
"port": "",
"advertiser": "bonjour-hap",
"allowInsecureRequest": false,
"manufacturer": "NRCHKB",
"model": "1.6.1",
"serialNo": "Default Serial Number",
"firmwareRev": "1.6.1",
"hardwareRev": "1.6.1",
"softwareRev": "1.6.1",
"customMdnsConfig": false,
"mdnsMulticast": true,
"mdnsInterface": "",
"mdnsPort": "",
"mdnsIp": "",
"mdnsTtl": "",
"mdnsLoopback": true,
"mdnsReuseAddr": true,
"allowMessagePassthrough": true
},
{
"id": "92d95ee4c013a822",
"type": "ui_tab",
"name": "Sisyphus",
"icon": "dashboard",
"disabled": false,
"hidden": false
}
]
We take your privacy seriously and will only use your personal information to provide you with the products and services you request from us. Please see our privacy policy for more details.
